Script Data in MS SQL Server 2008 Database Tables using Generate SQL Server Script Wizard

MS SQL Server 2008 has new Generate Scripts option which enables sql programmers to script data in SQL Server database tables. SQL developers can script data from sql tables into a script file, to the clipboard or script data on a new sql query window. Script data can be used to export and/or import table data from one database to another database.

The Script Data option creates INSERT statements foreach row in the table using the column data that the related table record has. Later than the scripted table data can be used by executing the generated t-sql scripts, to create a copy of the original table on an other server or an other database with identical data or identical rows on the destination database or table.

SQL Server generate script with data is a powerful SQL Server tool in order to create sql script to move data from one database to another database.

Script Data option is new with Microsoft SQL Server 2008. So on the Tasks context menu of a database although the Generate Scripts... option exists, we won't be able to find the Script Data options in the Choose Script Options screen of the Script Wizard.

In this article, I want to demonstrate with a sample how a sql developer can use the Generate Scripts task in order to script table data of a SQL Server 2008 database table.

If you are using Microsoft SQL Server 2011, Denali you can refer to sql tutorial How to Script Data in MS SQL Server 2011 using Generate and Publish Scripts Wizard in order to see the changes in generate script wizard.

Open the Generate Scripts SubMenu Item from Task Menu

First of all, open the Microsoft SQL Server Management Studio which is installed from the Client Tools of a MS SQL Server 2008 installation package.

Connect to a MS SQL Server 2008 database instance using the Server Explorer or using the Connect screen.

Then open the Object Explorer window and expand the Databases node.

Here I connected to the local SQL Server 2008 instance and clicked over the Databases node and a list of existing sql server databases are visible in the object explorer window now. Later, I clicked the sql database MyWorks which owns the tables that I want to script data, rows/records of the database.

Continue by right clicking on the database name and open the context menu, chooes Tasks menu and open submenu. Select Generate Script submenu item from the displated list.

Generate Scripts task
Tasks menu - Generate Scripts...

Generate SQL Server Script Wizards

When you select the Generate Scripts sub menu item the Generate SQL Server Scripts Wizard starts. SQL administrators and sql programmers can use the Script Wizard to generate t-sql scripts as a t-sql scripter to create scripts for any object (tables, views, schemas, etc). You can work in detail on the Script Wizard and find useful hint that you can benefit in your sql developments.

SQL Server 2008 Script Wizard
Generate SQL Server Scripts Wizard

Select Database to Script

The first step in the Script Wizard is detemining the database to work on. You can choose a sql database among the listed all sql databases existing on the sql server instance.

script data
Script Wizard - Select Database Option

Choose Script Options

Here is the screen where sql developers can configure the script details, and where developers can shape the automatic generated script according to the applications needs and requirements.

For our case, since we want to script table data which exists in the database that I have selected in the previous steps, we should set the Script Data option to True. You can see that the Script Data option is listed in the Table/View Options sections on the Choose Script Options screen. Since default Script Data option is set to false by default, we should alter this option in order to get an Insert statement for each row in the database table.

Note : Set Script Data option to True

script options
Script Wizard - Choose Script Options

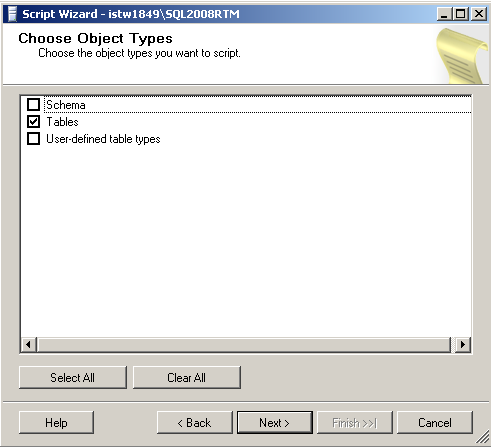

Choose Object Types

This option in the Script Wizard is for the types of the objects we want the script generator to build scripts for. Since we deal with database tables, we will select Tables among the listed options such as Schema and User-defined table types.

Object types to scripts
Script Wizard - Choose Object Types

Choose Tables

Since we selected Tables in the previous step, the wizard now displays all the tables that exists in the selected sql database. Here as a developer, I make a list of tables that I want to generate table data scripts for. For our sample case, I only select one table.

choose sql server tables to script its data
Script Wizard - Choose Tables

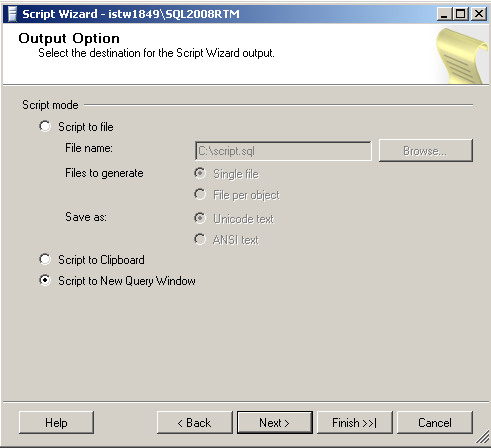

Output Option

Output Option screen in the Generate Script Wizard is the screen where a sql administrator or a programmer can make a selection among the existing output options. The script generator can create the desired scripts in the forms of a file, also can split the automatic generated script per object basis, or define the file as a unicode file or in ANSI text. A database developer can also select the file name and the output file folder for the script engine to create and place the script file.

Other output options are script to clipboard, just like a Copy-Paste operation and the last option is displaying the generated script on a new query window in the Microsoft SQL Server Management Studio.

I selected the New Query Window option in order to display the generated script by the MS SQL Server 2008.

script data output options
Script Wizard - Output Options

Script Wizard Summary

Here is the last stop before proceeding to the script generation where database programmers can see which options they have selected and can go back to previous screen and make re-selections in the options for a desired script.

script wizard
Script Wizard Summary

Generate Script Progress

Generate Script Progress screen displays the status of the scripting operation. If an error occurs sql developers and administrators can find the error details on this screen. If everything runs without any error and does not fail, you will see Success status for each scripting action on the progress screen.

generate data script
Generate Script Progress

Data Script on the Query Window

Since as the output option for the scripting, the New Query Window is selected, the final script is displayed on the SQL Server Management Studio Query Editor window as shown below.

This script is formed of a CREATE TABLE script for the source table and following that, INSERT statements for each row in the selected source table.

As you see, any sql developer or any database administrator can use the below script to create a copy of any sql database tables with their data on another sql database or an other sql server instance.

scripting table date
Sample Output to New Query Windows for Scripting Table Data

So as a summary, I want to say that if you frequently need to move tables from one sql database to an other with its data like me, you can use the Script Data option of the Generate SQL Server Scripts wizard. The Script Data option is a new enhancement in SQL Server Management Studio with the latest version, Microsoft SQL Server 2008. So you should have installed the Client Tools for MS SQL Server 2008 before using this option. SQL programmers can export data as sql script by using one of the existing SQL Server tools, SQL Server Generate Script Wizard.

SQL Server database admins and SQL developers can following SQL Server tutorials on tools and methods to generate database object scripts with ot without data as well.
1) How to Script MS SQL Server 2008 Database using SQL Server Script Wizard
2) Script Data in MS SQL Server 2008 Database Tables using Generate SQL Server Script Wizard
3) How to Script Data in MS SQL Server 2012 using Generate and Publish Scripts Wizard
4) SQL Server BCP Utility with sp_HelpText to Generate Script File for Each Stored Procedure in a Database
5) Create SQL Server Database Object Script using Visual Studio 2015
