Windows 7 Ultimate Installation (X64 RTM Edition Build 7600) Screenshots Step by Step
Microsoft has finally released the final build of the new operating system Windows 7.
The RTM version of the Windows 7 can be downloaded free by MSDN subscribers for different editions and for X86 or X64 computers.
Let me point on a small and nice issue for first time Windows 7 installers.
Microsoft Windows 7 Product Key can be entered later after the installation of the Windows 7 RTM is completed.
If Windows users want to evaluate the new Windows 7 before they migrate their OS to this new Windows 7, they can install and work for a period of time without entering the Windows 7 product key.
When you start installing Windows7, you will notice that the Install GUI has been improved with better graphichs.
I can easily say that besides the better quality images the Windows Install GUI has increased the user experience with the easy and friendly use of the installation screens.
Official Windows 7 Upgrade Chart
Before upgrading or installing a new Windows 7 system, be sure that you have checked the Windows 7 official Upgrade Chart.
This upgrade to Windows 7 chart is published from Microsoft and can offer you a more convenient way of upgrade to Windows 7 from your current system.
According to the chart, Microsoft supports Windows 7 upgrade from Windows Vista for matching editions and to Windows 7 Ultimate Edition.
And Microsoft does not support Windows 7 upgrade from Windows XP.
Users who wants a new Windows 7 upgrade from Windows XP have to perform custom Windows 7 installation.
Windows 7 Upgrade Advisor
An other most appretiated point about installing Windows 7 installers is that if you are not sure that your computer is capable of running a Windows 7 operating system on it, you can test and see your system can run Win7 by downloading free and running the Windows 7 Upgrade Advisor from Microsoft Downloads.
By running the Windows 7 Upgrade Advisor, you will get a report if your system can run Windows 7 and list of known compatibility issues if exists.
If those compability issues can be resolved you will also be presented with the solutions of the known problems.
Free Download Windows 7 Upgrade Advisor.
When I have executed the Windows 7 Upgrade Advisor on my Windows XP computer;
The advisor creates a report on system requirements, devices and programs.
For example the advisor states that I can not upgrade my system (we also know from Upgrade Chart that Windows 7 upgrade from Windows XP is not supported) and I had to perform a custom installation of Windows 7 then reinstall my programs. So I had to back up my files first.
I learnt that about hard drive free space, I had at least 16 GB of free disk space on my hard disk to install 32-bit Windows 7 installation and 20 GB of free disk space to install 64-bit Windows 7 install.
One major point dissapointing me was Microsoft Private Folder 1.0 is not running on Windows 7 (just like Windows Vista), and I had to uninstall it before Windows 7 setup.
Upgrade or Clean Install (Custom)
When you start installing Windows 7, you will have two options: Install a clean Windows 7 or Upgrade your existing OS to Windows 7.
Upgrade is only an active option if your existing Windows version is available for upgrade to Windows 7.
If Upgrade option is available and you choose Upgrade option, you can keep your existing files, settings, and installed programs for the new Windows 7 OS.
If the Upgrade option is not available, there is no other option rather than installing a clean Windows 7 or Custom installation.
Custom installation or a clean installation means installing a new Windows 7 operating system.
In this case you will have to choose a partition to setup Win7 and all data on this partition will be deleted.
This means data files, programs and settings on the chosen disk partition will be deleted.
It is important that you should take a back up of important files and settings.
Other wise you can not restore them after installing Windows 7.
All programs should be reinstalled in clean install cases after the Windows 7 setup is completed.
If you point to an other partition than the current OS exists, you can build a multiboot system.
One important note on Windows 7 Custom installation is if there exists a previous version of Windows on the partition you targeted for the custom install and you don't manually format or delete the partition, all user files are kept in a private folder named Windows.old folder on the partition.
After the Win7 installation is completed, you can copy and paste from Windows.old folder and use your files again without a loss.
For Windows XP users, you can not upgrade to Windows 7 directly from Windows XP to Windows 7.
Windows XP users can benefit from Windows Easy Transfer (WET) to keep their files and settings.
Then they have to perform a custom install of Windows 7, and later transfer back files and settings using WET (Windows Easy Transfer) to new Windows 7 computer.
In fact Windows Easy Transfer grants an easy and alternate method of backing up personal data and settings in order to restore back later.
Before you start installing Windows 7
Before you begin starting Windows 7 installation read the following check list in order to prevent data loss and misunderstandings.
1) First download and run the Windows 7 Upgrade Advisor to get a report about the capabilities of your system and known compability issues.
1) Decide which edition of Windows 7 you want to install, a 32-bit edition of Windows 7 or a 64-bit edition of Windows 7. If you have decided to install 64-bit Windows 7 edition, be sure that your computer has a 64-bit processor.
2) Then back up your files to a different data storage. This storage can be external hard disks, a CD or a DVD, a USB flash drive, or even a network folder in your environment.
3) If you think of upgrading Windows Vista to Windows 7, connect to internet in order to get the latest updates for your computer.
X64 Windows 7 RTM Ultimate Edition Installation

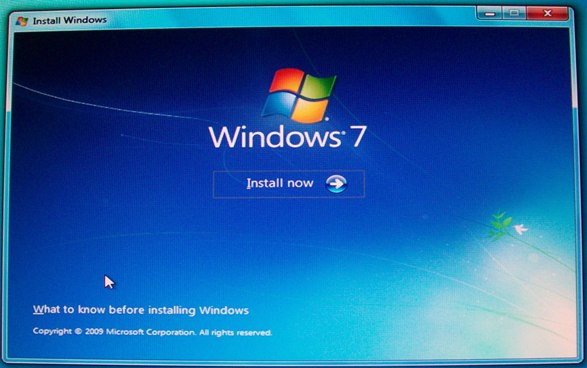

Place the Windows 7 Ultimate X64 RTM Setup DVD into the disk drive. The Windows
7 installation will automatically start and display the Windows 7 Install
Windows 7 screen.
You can begin Windows 7 setup by clicking the "Install now" button.
Windows 7 Setup is starting...
Windows will start installation by copying the temporary setup support files.

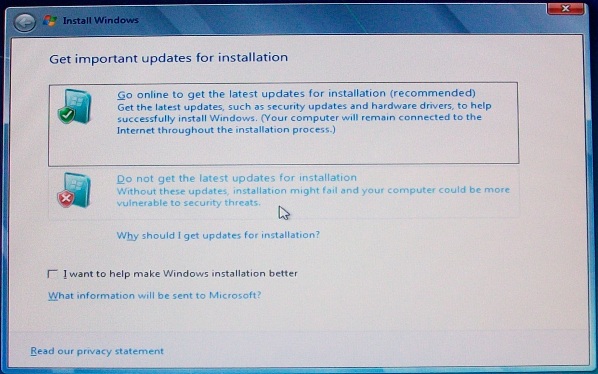

If you are using Microsoft Windows Vista and want to upgrade your system to
Windows 7 from Vista, you can consider to get the latest updates for a more
But I you prefer a clean install rather than upgrade Vista to Windows 7, you
might select not to continue updating your present Vista OS. You can directly
continue with the Windows 7 setup.
So select the first option for a Windows 7 upgrade from Vista, and select the
second uption for clean install. If you make a clean install and select a
different partition for Windows 7 other than the partition where Vista resides,
you can have Windows 7 and Windows Vista running side by side.
The checkbox at the bottom of the screen "I want to help make Windows
installation better" is for enabling the Windows system to send Windows 7
experiences and logs, or possible error details to Microsoft to be used for a
better installation experience in future.
If you have questions about the security of your private information by
selecting this option you can click the link "What information will be sent to

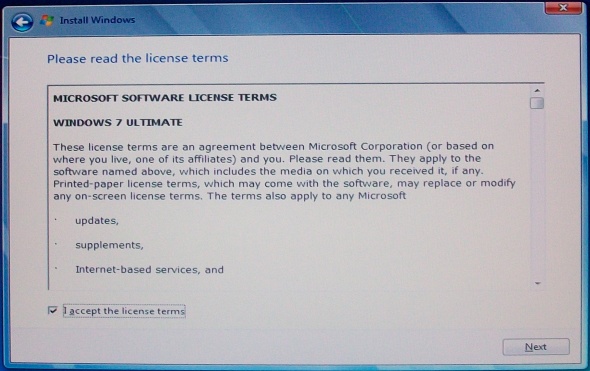

Now accept the Microsoft Software Licence Terms (the EULA) otherwise you can
not continue installing Windows 7 with a disabled Next button.

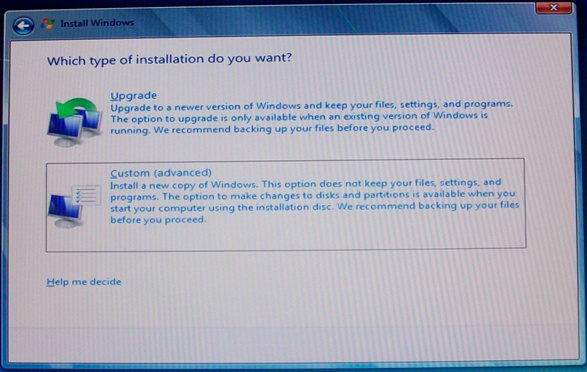

In this screen of the installation wizard, users can select to Upgrade or proceed with a
new copy of Windows 7 by selecting the
Custom (advanced) option.
If you choose Upgrade to Windows 7, you will upgrade to a newer version of Windows (Windows 7
RTM) and will keep your existing files, settings and programs. For upgrade
Windows 7 supports from Windows Vista with SP2. It is recommended to backup your
files in case of an error not to lose your valuable information.
If you choose Custom (advanced) setup, this will install a new Windows 7
operating system on your computer. In this case, your files, settings and
programs are not kept and you have to install your programs again after the
installation of Windows 7 is completed and migrate your program settings
manually. You should backup your files manually to a different partition where
you want to install the operating system on or store your files on an external

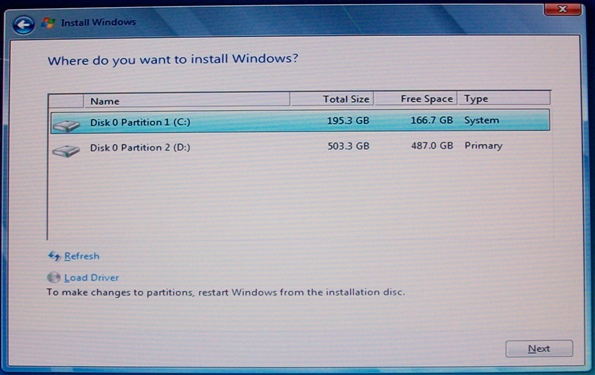

In this setup step, the Windows 7 installation wizard will request from you the disk partition
you want to install Windows 7 on.

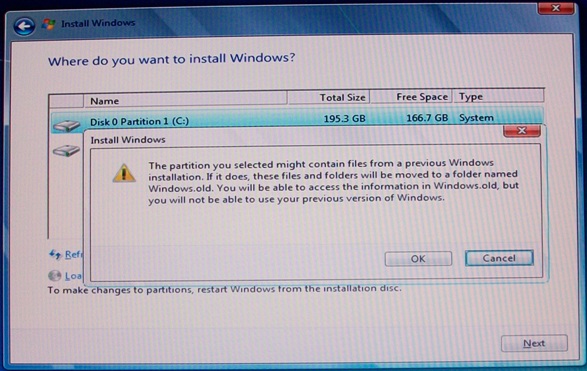

If you have previously installed Windows system on your computer like Windows
XP, Windows Vista or a non-RTM version of Windows 7 and if you have selected the
partition that previous OS is installed on, Setup Wizard will display a warning
similar to shown below.
The message is warning the Windows installer user about :
The partition you selected might contain files from a previous Windows
installation. If it does, these files and folders will me moved to a folder
named Windows.old. You will be able to access the information in Windows.old,
but you will not be able to use previous version of Windows.
In fact, Windows.old folder is a perfect life saver if you have forgotten to
backup your personal files, settings, and even driver files, etc. All files will
be stored in a folder named Windows.old by the Windows 7 installer. Later some
time passed after the installation and you convinced that there is nothing
missing, then you can remove the Windows.old folder easily.

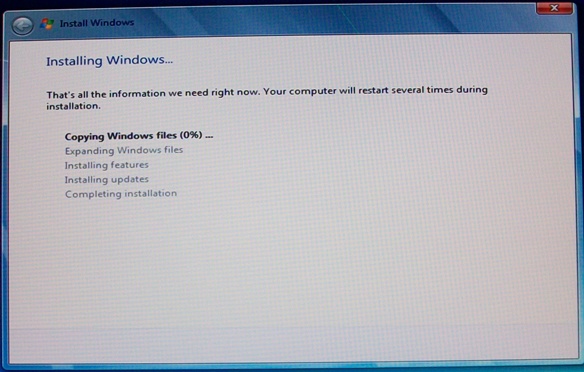

Windows 7 installation is again starting after the first group of user input for
Windows configuration is completed. Setup will continue now with copying Windows files. This
step of installing Windows 7 will take some time. And during the steps shown on this screen
the computer will reboot a few times. I guess twice or three times. The user
installing Windows 7 is not required
to interact during reboots and all these steps.
After some time windows needs to restart to continue installing Windows 7.
It will shut down.
Then continues installing Windows 7 Ultimate edition.

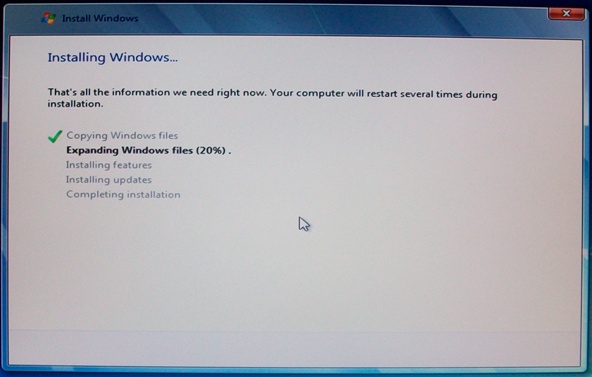

When the copying of Windows files is completed the next step expanding Windows
files step will take place. You are not required to follow for user interrection
during these steps.
Windows setup will update the registry settings.
Windows setup will continue by starting services

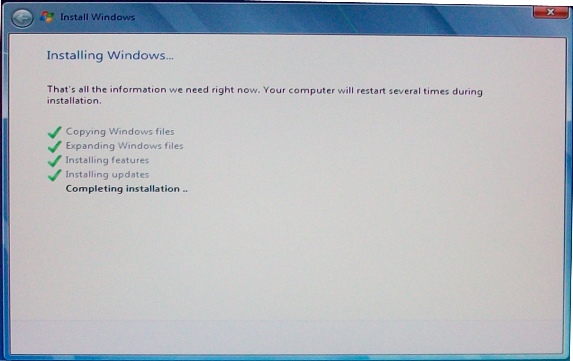

We are near to the end of the Windows installation.
At this windows installation wizard step, you are required after some time for
Before the RTM version you would select the Windows 7 language from the available list of languages.
For the released RTM edition I downloaded from MSDN there is only one language in my setup, English.

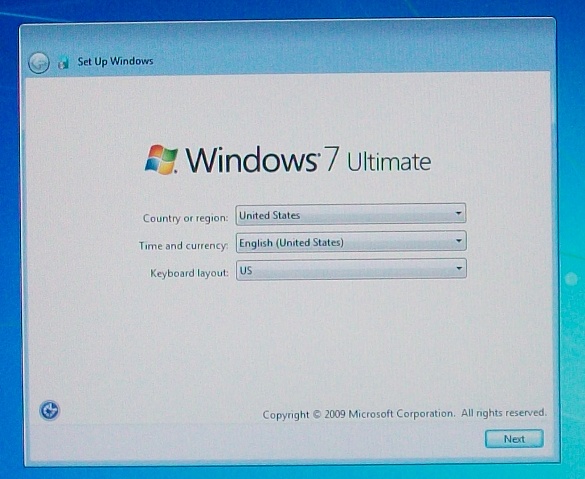

So your first interaction might be selecting the country or region from the
available list of countries and regions.
After you have selected the time and currency format, and identifying the
keyboard or input method, continue installing Windows 7 with the Next button on
the wizard screen. By the way, default values are United States, English (United
States) and US keyboard layout as shown in the below screenshot.

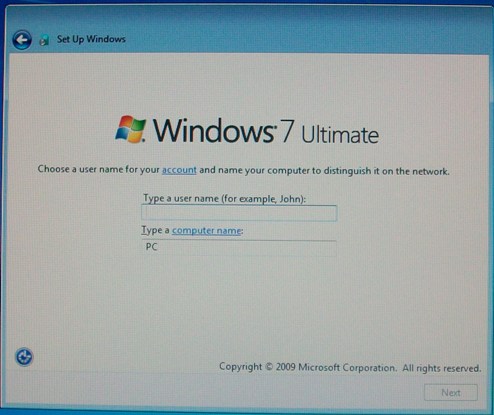

The following Windows 7 installation screen is identifying the administrator
account user name for your Windows 7 computer and identifying the new name of
your computer within a network.

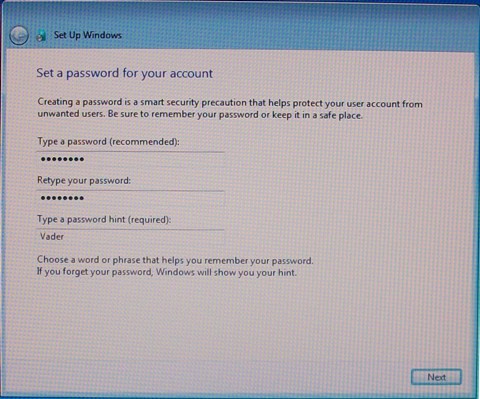

In this screen, Windows 7 setup will ask you set the administrator password for the user account
you have created in the previous step. You'll be asked for a password hint as

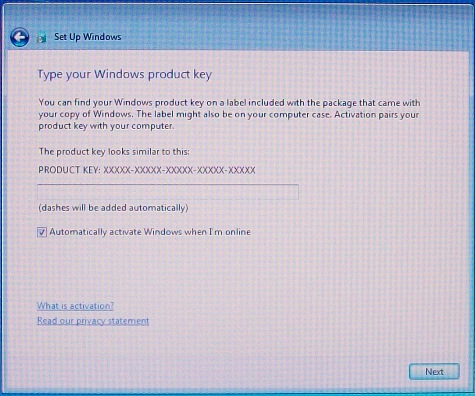

The Windows 7 setup wizard will ask the installer now the Windows product key.
You can notice that the Next button which is enabling the continuity within the
wizard is not disabled. So you can still continue installing Microsofy Windows 7
RTM without entering a product key. Installing Win7 without the requirement of a
Windows 7 product key enables Windows user evaluate and test the new Windows 7 Ultimate edition
for a period of time.
In the above Set Up Windows screen you can also enable "Automatically activate
Windows when I'm online." option. This option will complete the Windows 7
activation without your manual work.

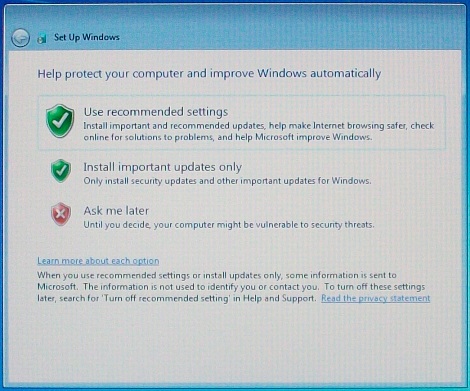

On this Windows7 installation screen, you can configure Microsoft Windows Updates method. It is
the recommended settings to install the Windows updates automatically. But you can
choose the "Ask me later" option to make the decision later or select the
"Install important updates only" option and continue to install Windows 7

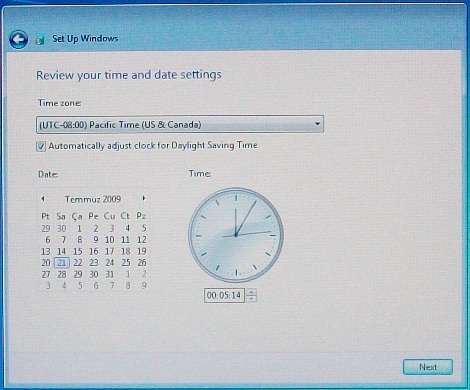

We are now at the last user input screens where we will choose the time zone and set the current date time
The networking options for the computer's current location is not now asked by
the Windows 7 installation wizard. This was one of the setup screens in previous
versions of Win7.
The setup will inform the user about the current process it is running.
Setup will continue after restarting your computer.
Setup is preparing your computer first use.
Preparing your desktop...

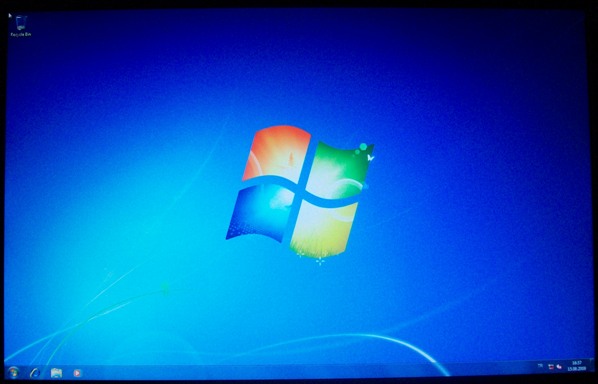

At last! Windows 7 users now ready to use, evaluate and test the new Windows 7 -
Windows 7 Ultimate RTM version.
