Security Checks for ABAP CVA - Read on sensitive database tables

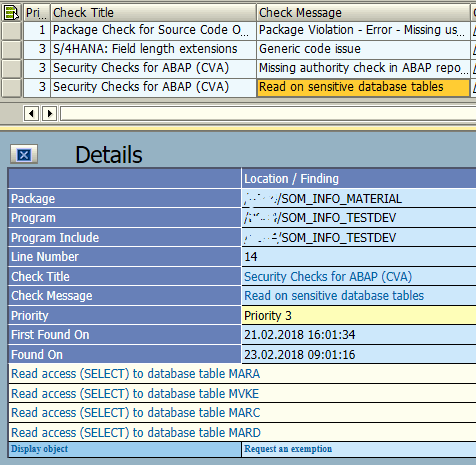

When I execute ATC ABAP Test Cockpit Tool code checks for CVA (Code Vulnerability Analysis) results, I see following CVA entry:Security Checks for ABAP (CVA) Read on sensitive database tables.

And in the message detail, I see MARA, MVKE, MARC and MARD tables are accessed and listed as sensitive database tables with following messages:

Security Checks for ABAP (CVA)
Read on sensitive database tables
Read access (SELECT) to database table MARA
Read access (SELECT) to database table MVKE
Read access (SELECT) to database table MARC
Read access (SELECT) to database table MARD


Read on sensitive database tables

When I clicked on one of the message it redirected me to following ABAP SELECT command.

select
 mvke~vkorg, " Sales Organization
 mvke~vtweg, " Distribution Channel
 mara~matnr, " Material Number
 mvke~vmsta, " Distribution-chain-specific material status
 marc~trame, " Stock in Transit
 mard~labst, " Valuated Unrestricted-Use Stock
 mard~insme, " Stock in Quality Inspection
 mard~speme, " Blocked Stock
 mard~retme " Blocked Stock Returns
into table @data(lt_data)
from mara as mara
inner join mvke as mvke
 on mara~matnr = mvke~matnr
inner join marc as marc
 on mara~matnr = marc~matnr
inner join mard as mard
 on marc~matnr = mard~matnr and
  marc~werks = mard~werks
where
 mara~matnr = 'HB510ABR0' and
 mvke~vkorg = @lv_vkorg and
 mvke~vtweg = @lv_vtweg and
 marc~werks = '1321'.

I converted the above SELECT statement into a parametric CDS view object and added OData annotation "AccessControl.authorizationCheck" as "#CHECK" in the below format

@AbapCatalog.sqlViewName: '/KODYAZ/SOMMAT_V'
@AbapCatalog.compiler.compareFilter: true
@AccessControl.authorizationCheck: #CHECK
@EndUserText.label: '/KODYAZ/SOM_INFO_MAT_CDS'
define view /KODYAZ/SOM_INFO_MAT_CDS

with parameters
 p_matnr : matnr,
 p_vkorg : vkorg,
 p_vtweg : vtweg,
 p_werks : werks_d,
 p_spras : spras

as

select
 mvke.vkorg, -- Sales Organization
 mvke.vtweg, -- Distribution Channel
 mara.matnr, -- Material Number
 mvke.vmsta, -- Distribution-chain-specific material status
 marc.trame, -- Stock in Transit
 mard.labst, -- Valuated Unrestricted-Use Stock
 mard.insme, -- Stock in Quality Inspection
 mard.speme, -- Blocked Stock
 mard.retme, -- Blocked Stock Returns
 makt.maktx, -- Material Definition
 tvmst.vmstb, -- material distribution status text
 mvke.mvgr3,
 tvm3t.bezei, -- material group 3 text
 lfa1.name1
from mara
inner join mvke
 on mvke.matnr = mara.matnr
inner join marc as marc
 on marc.matnr = mara.matnr and
  marc.werks = :p_werks
inner join mard as mard
 on mard.matnr = marc.matnr and
  mard.werks = marc.werks
left outer join makt
 on makt.matnr = mara.matnr and
  makt.spras = :p_spras
left outer join tvmst
 on tvmst.vmsta = mvke.vmsta and
  tvmst.spras = :p_spras
left outer join tvm3t
 on tvm3t.mvgr3 = mvke.mvgr3 and
  tvm3t.spras = :p_spras
left outer join lfa1
 on lfa1.lifnr = mara.mfrnr
where
 mara.matnr = :p_matnr and
 mvke.vkorg = :p_vkorg and
 mvke.vtweg = :p_vtweg

Then I modified the original ABAP program source code as follows replacing the problematic ABAP SELECT command with below SELECT from parametric CDS View code

select * into table @data(lt_data)
from /kodyaz/som_info_mat_cds(
  p_matnr = @lv_matnr
 , p_vkorg = @lv_vkorg
 , p_vtweg = @lv_vtweg
 , p_werks = @lv_werks
 , p_spras = @sy-langu
).

After the modification of OpenSQL in ABAP code into parametric CDS view, the Security Checks for ABAP (CVA) errors about Read on sensitive database tables dissappeared successfully.
