How to Read SAP Workflow Container Contents using ABAP Function Module

ABAP programmer can use ABAP function module SAP_WAPI_READ_CONTAINER to display and read SAP workflow task container contents which are stored as element-value pairs. In this ABAP tutorial, I tried to share sample ABAP codes which can help the developers to use for reading SAP workflow container data.

ABAP programmers can use standart ABAP function module SAP_WAPI_READ_CONTAINER to read the contents of a SAP workflow task container data.

To see how SAP_WAPI_READ_CONTAINER ABAP function module works, let's use a sample work item id. Perhaps before you call SE37 tcode, first call SWIA transaction code (Process Work Item as Administrator) and execute the report and select a sample Work Item ID from the list.

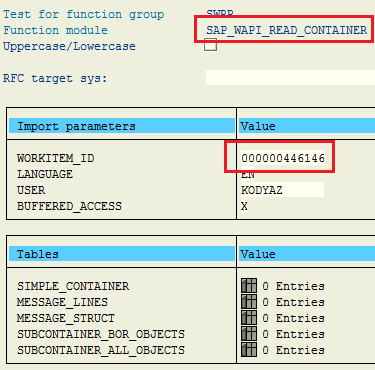

Now we are ready to execute SE37 tcode and paste the function module "SAP_WAPI_READ_CONTAINER" in the FM name input text. Run the function module. Then provide the work item id as the marked WORKITEM_ID import parameter value.

read SAP workflow work item container using ABAP function module
Run ABAP function module SAP_WAPI_READ_CONTAINER to read container data

After you execute the SAP_WAPI_READ_CONTAINER function module, as seen in below screenshot SIMPLE_CONTAINER Table parameter can be used to display the contents of the workitem container data.

ABAP function module to read workflow container contents
Execution results of ABAP function module and Simple_Container with Workflow Item container data

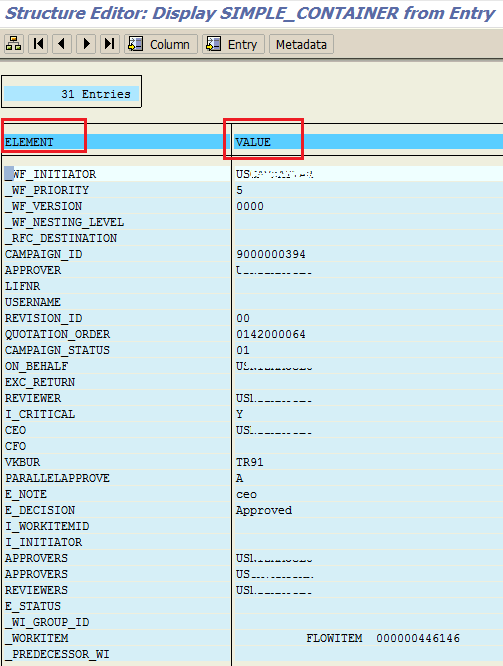

When ABAP programmer clicks on Simple_Container table parameter, as seen in below image the workflow container data is listed as element value pairs.

workflow container data in element value pairs
Execution results of ABAP function module and Simple_Container with Workflow Item container data

If you want to develop an ABAP program which reads workflow container data using SAP_WAPI_READ_CONTAINER function module, you can use following ABAP code sample as a starting point for your report.

DATA gt_simple_container TYPE TABLE OF swr_cont.

CALL FUNCTION 'SAP_WAPI_READ_CONTAINER'
 EXPORTING
  workitem_id = 446146
* LANGUAGE = SY-LANGU
* USER = SY-UNAME
* BUFFERED_ACCESS = 'X'
* IMPORTING
* RETURN_CODE =
* IFS_XML_CONTAINER =
* IFS_XML_CONTAINER_SCHEMA =
 TABLES
  simple_container = gt_simple_container
* MESSAGE_LINES =
* MESSAGE_STRUCT =
* SUBCONTAINER_BOR_OBJECTS =
* SUBCONTAINER_ALL_OBJECTS =
.
DATA h1(25) TYPE c VALUE ' Element'.
DATA h2(50) TYPE c VALUE ' Value'.
IF gt_simple_container IS NOT INITIAL.
 WRITE:/ h1, h2.
 ULINE.
ENDIF.
LOOP AT gt_simple_container INTO DATA(gs_simple_container).
 WRITE:/ gs_simple_container-element(25) UNDER h1,
  gs_simple_container-value(50) UNDER h2.
ENDLOOP.

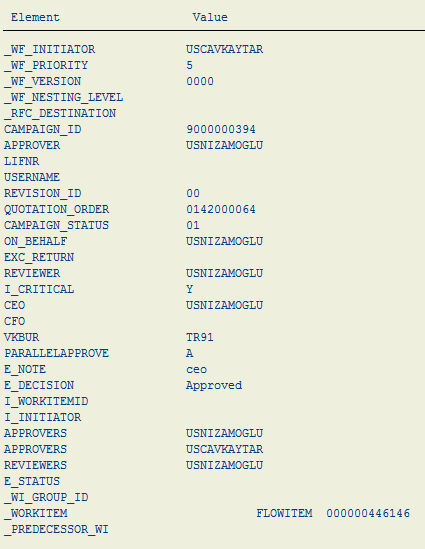

Above ABAP program will list all element-value pairs stored in the workflow container content.

ABAP program to list SAP workflow container contents
ABAP codes to list Workflow container data as key-value pairs

If you work on a specific workflow task, it is possible that you already know the element names of the ABAP workflow container data. If the ABAP programmer is dealing with specific container data of a SAP workflow task, you can directly READ related element from the Simple_Container table parameter.

DATA gt_simple_container TYPE TABLE OF swr_cont.

CALL FUNCTION 'SAP_WAPI_READ_CONTAINER'
 EXPORTING
  workitem_id = 446146
 TABLES
  simple_container = gt_simple_container.

IF gt_simple_container IS NOT INITIAL.
 READ TABLE gt_simple_container REFERENCE INTO DATA(lr_simple_container) WITH KEY element = 'CAMPAIGN_ID'.
 IF sy-subrc = 0.
  WRITE: 'Campaign ID', lr_simple_container->value .
 ENDIF.
 READ TABLE gt_simple_container REFERENCE INTO lr_simple_container WITH KEY element = 'VKBUR'.
 IF sy-subrc = 0.
  WRITE: 'Sales Office', lr_simple_container->value .
 ENDIF.
 READ TABLE gt_simple_container REFERENCE INTO lr_simple_container WITH KEY element = 'E_DECISION'.
 IF sy-subrc = 0.
  WRITE: 'Decision', lr_simple_container->value .
 ENDIF.
ENDIF.

Here is the output of the simple ABAP report which displays specific element values from a SAP Workflow task container.

list workflow container data in ABAP report
How to read SAP Workflow container contents for specific element

Above ABAP codes work for a given specific SAP Workflow task id. If you need to display data for a given task (like TS90900107, etc) in a defined period the programmer has to loop in the list of work items and call above code block. Of course for a better look-and-feel the workflow container data should be stored in an internal table and the result could be displayed on an ALV grid for a table display.

DATA header1(25) TYPE c VALUE 'WorkItem ID'.
DATA header2(25) TYPE c VALUE 'Campaign ID'.
data s_taskid like swwwihead-wi_rh_task VALUE 'TS90900107'.
DATA gt_simple_container TYPE TABLE OF swr_cont.

SELECT wi_id
 FROM swwwihead
 INTO TABLE @DATA(lt_swwwihead)
 WHERE
  wi_rh_task = @s_taskid AND " task id
* wi_cd IN @s_wi_cd AND " create date filter criteria
  wi_stat NE 'COMPLETED'.

IF lt_swwwihead IS NOT INITIAL.
 WRITE:/ header1, header2.
ENDIF.

LOOP AT lt_swwwihead REFERENCE INTO DATA(lr_swwwihead).
 REFRESH gt_simple_container.

 CALL FUNCTION 'SAP_WAPI_READ_CONTAINER'
  EXPORTING
   workitem_id = lr_swwwihead->wi_id
  TABLES
   simple_container = gt_simple_container.

 READ TABLE gt_simple_container REFERENCE INTO DATA(lr_simple_container) WITH KEY element = 'CAMPAIGN_ID'.
 IF sy-subrc = 0.
  WRITE: /
   lr_swwwihead->wi_id UNDER header1,
   lr_simple_container->value UNDER header2.
 ENDIF.

ENDLOOP.
