Find BAdI for ABAP Program and Display Implementation Class Code


In this ABAP tutorial for developers we will see how to find BAdI implementations and display BAdI implementation class ABAP source codes for any ABAP program or SAP transaction code.

First, for ABAP developers tutorial shows how to find BAdI (Business Add-In) for an SAP program or a SAP transaction code.
Then programmers can use the ABAP function module SXV_GET_CLIF_BY_NAME from Business Add-In Administration Module function group to find the BAdI names used in the target ABAP program or SAP transaction.
Finally, using SE18 ABAP BAdI Builder tool, programmers can display ABAP codes for class methods of the BAdI implementation.

Find BAdI for SAP Program or Transaction Code

Using SE37 tcode, launch Function Builder editor and display SXV_GET_CLIF_BY_NAME function module.

Put a break point at CALL FUNCTION 'SXV_ADD_PREFIX' code line.

find ABAP BAdI for SAP program or transaction code

Then launch target SAP transaction code or ABAP program.

When the break point is hit on ABAP debugger tool, for example for VA02 tcode the debugger will hit at following values

CALL FUNCTION 'SXV_ADD_PREFIX'
 EXPORTING
  name = name
  prefix = prefix
 IMPORTING
  new_name = clif.

The Exit_Name is the BAdI name
The CLIF is the class name for the BAdI

In my example, the ABAP function module is hit 5 times with following values in ABAP debugger tool.

NAME BADI_SD_SALES
PREFIX CL_EX_
CLIF CL_EX_BADI_SD_SALES

NAME BADI_SD_SALES_BASIC
PREFIX CL_EX_
CLIF CL_EX_BADI_SD_SALES_BASIC

NAME UKM_R3_ACTIVATE
PREFIX CL_EX_
CLIF CL_EX_UKM_R3_ACTIVATE

NAME UKM_FILL
PREFIX CL_EX_
CLIF CL_EX_UKM_FILL

NAME BADI_MATN1
PREFIX CL_EX_
CLIF CL_EX_BADI_MATN1


Display ABAP Codes of a BAdI

To display ABAP source codes of a BAdI, developers can use the SE18 (BAdI Builder) SAP transaction

Launch SE18 and type the BAdI name in the relevant input textbox then click on Display button

ABAP BAdI builder transaction code SE18

Using top menu, click on Implementation > Overview

SAP BAdI implementations for ABAP code

This menu option will enable ABAP developer to list all implementations of the BAdI definition

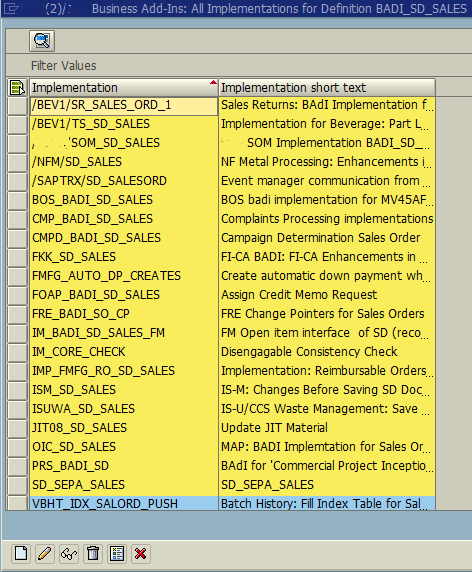

implementation list of BAdI definition for ABAP developer in SAP

Select the related implementation and double-click on it to display implementation details.

When the implementation details screen is displayed, switch to Interface tab. The list of ABAP class methods for the interface will be shown on a table view.

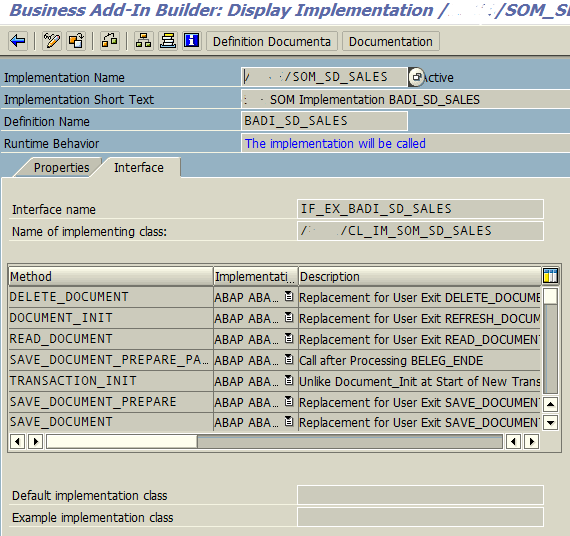

BAdI implementation details and ABAP class methods

Double click on the method name to see ABAP codes running behind the class method.

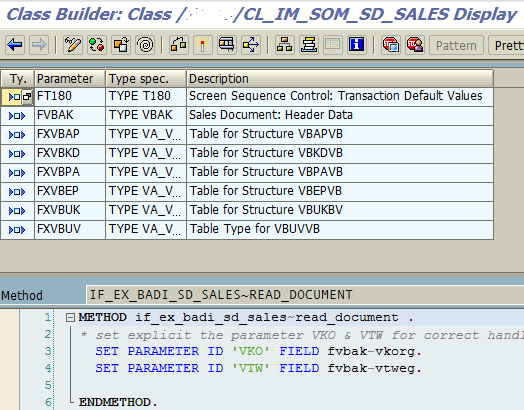

ABAP class method codes of SAP BAdI implementation
