Connect SAP from Eclipse using ABAP Project

ABAP programmers can connect to SAP systems from Eclipse to develop ABAP project in Eclipse development environment. While I try to connect to a SAP system for development in Eclipse for the first time, I got "User is not authorized to access system via ABAP in Eclipse" error message. Later I learnt that ABAP Development Tools guide shows configuration settings and authorization roles required for ABAP development in Eclipse.

When I create new ABAP project in Eclipse Juno development IDE where I manually define new system connection for a SAP system client, I got following authorization error message at SAP logon step.

New ABAP Project
Logon to System
User {SAP-user} is not authorized to access system {SAP-system} via ABAP in Eclipse (No authorization to access the resource /sap/bc/adt/compability/graph.)

connect error to SAP via ABAP in Eclipse

For official SAP document on required developer roles and configuration for ABAP Development Tools for developing ABAP using Eclipse IDE (Integrated Development Environment), please refer to following guide:
Configuration Guide for Configuring the ABAP Back-end for ABAP Development Tools


Connect SAP from Eclipse

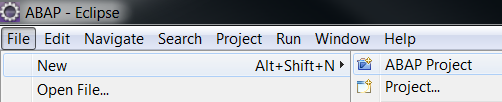

In order to connect to SAP from Eclipse, first create a new ABAP project. Follow Eclipse menun options:
File > New > ABAP Project

create new ABAP project in Eclipse

Then define SAP system connection properties manually for use in new ABAP project.

SAP system connection properties for ABAP project in Eclipse

The wizard then enables ABAP developer to logon to SAP system with user account. Unfortunately if required roles are not assigned to ABAP developer the error "No authorization to access the resource /sap/bc/adt/compability/graph" will be experienced.

logon to SAP system from Eclipse IDE
