SAP Custom Splitter Container cl_gui_splitter_container ABAP Example Code

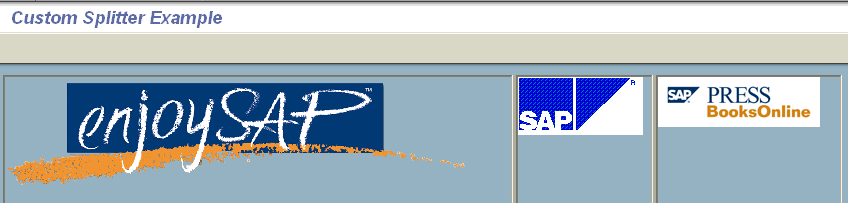

SAP custom splitter using ABAP code

REPORT ZSPLITTERTEST.

DATA :
 OK_CODE LIKE sy-ucomm,
 SAVE_OK LIKE sy-ucomm.

DATA :
 url(256) TYPE C,
 init(1) TYPE C.

" cl_gui_custom_container container for hosting splitter
DATA cl_gui_custom_container_obj TYPE REF TO cl_gui_custom_container.
" cl_gui_splitter_container splitter container
DATA cl_gui_splitter_container_obj TYPE REF TO cl_gui_splitter_container.
" cl_gui_container objects for splitter
DATA cl_gui_container_1 TYPE REF TO cl_gui_container.
DATA cl_gui_container_2 TYPE REF TO cl_gui_container.
DATA cl_gui_container_3 TYPE REF TO cl_gui_container.
" cl_gui_picture objects
DATA cl_gui_picture_1 TYPE REF TO cl_gui_picture.
DATA cl_gui_picture_2 TYPE REF TO cl_gui_picture.
DATA cl_gui_picture_3 TYPE REF TO cl_gui_picture.

START-OF-SELECTION.
 CALL SCREEN 100.
END-OF-SELECTION.

ABAP screen painter element list

MODULE STATUS_0100 OUTPUT.

SET TITLEBAR 'TITLE'.
SET PF-STATUS 'STATUS'.

IF init IS INITIAL.

CREATE OBJECT cl_gui_custom_container_obj EXPORTING container_name = 'CUSTOM'.

" Create SPLITTER and SPLITTER panes
CREATE OBJECT cl_gui_splitter_container_obj
  EXPORTING parent = cl_gui_custom_container_obj
    rows = 1
    columns = 3.

CALL METHOD cl_gui_splitter_container_obj->get_container
  EXPORTING
    row = 1
    column = 1
  RECEIVING
    container = cl_gui_container_1.

CALL METHOD cl_gui_splitter_container_obj->get_container
  EXPORTING
    row = 1
    column = 2
  RECEIVING
    container = cl_gui_container_2.

CALL METHOD cl_gui_splitter_container_obj->get_container
  EXPORTING
    row = 1
    column = 3
  RECEIVING
    container = cl_gui_container_3.

DATA repid TYPE sy-repid.
DATA dynnr TYPE sy-dynnr.
repid = sy-repid.
dynnr = sy-dynnr.

CREATE OBJECT cl_gui_picture_1 EXPORTING parent = cl_gui_container_1.
CREATE OBJECT cl_gui_picture_2 EXPORTING parent = cl_gui_container_2.
CREATE OBJECT cl_gui_picture_3 EXPORTING parent = cl_gui_container_3.

" Request an URL from the data provider by exporting the pic_data.
CLEAR url.
PERFORM load_pic_from_db CHANGING url.

" load picture
CALL METHOD cl_gui_picture_1->load_picture_from_url
  EXPORTING
    url = url.

CLEAR url.
url = 'file://C:\sap-logo.gif'.
CALL METHOD cl_gui_picture_2->load_picture_from_url
  EXPORTING
    url = url.

CLEAR url.
url = 'http://www.sap-press.com/images/logo_books_online_162_50.gif'.
CALL METHOD cl_gui_picture_3->load_picture_from_url
  EXPORTING
    url = url.

init = 'X'.

CALL METHOD cl_gui_cfw=>flush
  EXCEPTIONS
    cntl_system_error = 1
    cntl_error = 2.

ENDIF.

ENDMODULE. " STATUS_0100 OUTPUT

FORM load_pic_from_db CHANGING url.

DATA query_table LIKE w3query OCCURS 1 WITH HEADER LINE.
DATA html_table LIKE w3html OCCURS 1.
DATA return_code LIKE w3param-ret_code.
DATA content_type LIKE w3param-cont_type.
DATA content_length LIKE w3param-cont_len.
DATA pic_data LIKE w3mime OCCURS 0.
DATA pic_size TYPE i.

REFRESH query_table.
query_table-name = '_OBJECT_ID'.
query_table-value = 'ENJOYSAP_LOGO'.
APPEND query_table.

CALL FUNCTION 'WWW_GET_MIME_OBJECT'
 TABLES
  query_string = query_table
  html = html_table
  mime = pic_data
 CHANGING
  return_code = return_code
  content_type = content_type
  content_length = content_length
 EXCEPTIONS
  OBJECT_NOT_FOUND = 1
  parameter_not_found = 2
 OTHERS = 3.
IF sy-subrc = 0.
 pic_size = content_length.
ENDIF.

CALL FUNCTION 'DP_CREATE_URL'
 EXPORTING
  type = 'image'
  subtype = cndp_sap_tab_unknown
  size = pic_size
  lifetime = cndp_lifetime_transaction
 TABLES
  data = pic_data
 CHANGING
  url = url
 EXCEPTIONS
  OTHERS = 1.

ENDFORM. " load_pic_from_db

MODULE USER_COMMAND_0100 INPUT.

SAVE_OK = OK_CODE.
CLEAR OK_CODE.

CASE SAVE_OK.
 WHEN 'EXIT' OR 'CNCL' OR 'BACK'.
  LEAVE PROGRAM.
 WHEN OTHERS.
ENDCASE.

ENDMODULE. " USER_COMMAND_0100 INPUT
