What is Change Data Capture?

Change data capture feature is a new enhancement in sql server management with SQL Server 2008, Katmai. Change Data Management is included in the new features of Katmai with the June CTP release of SQL Server 2008.

Change data capture enables SQL Server administrators and developers to capture insert, update and delete events in a sql server table as well as the details of the event which caused data change on the relevant database table. When you apply Change Data Capture feature on a database table, a mirror of the tracked table is createad which reflects the same column structure of the original table and additional columns that include metadata which is used to summarize what is the change in the database table row.

So enabling the Change Data Capture feature on a database table, you can track the activity on modified rows or records in the related table. Change Data Capture (CDC) can be considered as Microsoft solution for data capture systems in SQL Server 2008 and next versions. There were samples of data capture solutions implemented for Microsoft SQL Server 2000 and SQL Server 2005 by using after update/insert or after delete triggers. But CDC enables SQL Server developers to build sql server data archiving without a necessity to create triggers on tables for logging. SQL Server database administrators or programmers can also easily monitor the activity for the logged tabled.






How to enable a SQL Server database for Data Change Capture


Before applying the data change capture (CDC) on a SQL Server database table the database should be enabled for Data Change Capture. To see whether data change capture (cdc) is enabled over a database, you can run and check the is_cdc_enabled column value in the sys.databases catalog view by running the following query.

select [name], database_id, is_cdc_enabled from sys.databases

If is_cdc_enabled column value for the related database is false, then you can enable this change data capture by running the sys.sp_cdc_enable_db_change_data_capture system stored procedure in the related database.

exec sys.sp_cdc_enable_db_change_data_capture

When CDC is enabled on a database, a new user named "cdc", a schema named "cdc" and the following tables are created on the related database.

  • cdc.captured_columns
  • cdc.change_tables
  • cdc.ddl_history
  • cdc.index_columns
  • cdc.lsn_time_mapping


How to enable a database table for Data Change Capture

After enabling the database for CDC, now you can configure tables that you wish to track the modifications upon by running the sys.sp_cdc_enable_table_change_data_capture system stored procedure.

Before running the sys.sp_cdc_enable_table_change_data_capture stored procedure you can check whether the related table is enabled preior for data change capture by querying the is_tracked_by_cdc column value in the sys.tables for the related database table.

select [name], is_tracked_by_cdc from sys.tables

Also for Change Data Capture to be successfull, SQL Server Agent should be running. Otherwise, you may get the following error message:

SQLServerAgent is not currently running so it cannot be notified of this action.

exec sys.sp_cdc_enable_table_change_data_capture @source_schema = N'dbo', @source_name = N'Country', @role_name = N'cdc_Admin'

SQL Server Agent plays an important role in the database design or implementation of data capture solution for Microsoft SQL Server databases since for each database two CDC related job is created automatically when sys.sp_cdc_enable_table_change_data_capture is first executed for a database. These jobs are named cdc.database_name_capture and cdc.database_name_cleanup
cdc.database_name_capture SQL Server job runs the sql server system stored procedure sys.sp_MScdc_capture_job to start Change Data Capture Collection Agent
For more detailed inside view of SQL Server for CDC you can examine the stored procedure sp_cdc_scan how the CDC scan is executed on a data capture enabled sql database.
cdc.database_name_cleanup SQL Server job runs the sql server system stored procedure sys.sp_MScdc_cleanup_job to clean up database changes tables

After you have run the above t-sql command, you can view the cdc.change_tables for the newly created record. capture_instance is a parameter that can be set by passing it as a parameter to the sys.sp_cdc_enable_table_change_data_capture procedure. If you have not passed the capture instance as a parameter, you can get the default created value by the capture_instance column value of the cdc.change_tables table.

After you have enabled CDC for a table, for example for Country table just as I did, another table is created for keeping changed data and information about the changes.



Change Data Capture (CDC)



As you will see there are five additional fields to the mirrored original table

  • __$start_lsn
  • __$end_lsn
  • __$seqval
  • __$operation
  • __$update_mask

__$operation identifies the data manipulation language (DML) operation which caused the Change Data Capture fetch this process.

An __$operation column value 2 refers to an Insert statement

If an Update statement is run against a row in the table, a row with __$operation column value 3 is created referring to the column values before update and a row with __$operation column value 4 is created referring to the column values after update statement is run.

An __$operation column value which is equal to 1 refers to a Delete statement.

__$update_mask identifies the columns which are affected by the DML command. If an Insert command (where __$operation is equal to 2) or a Delete command (where __$operation is equal to 1) since all the columns are effected __$update_mask has a value formed of bit value 1's for each column.

For example, the followin Insert command results with binary value "111" for each column having 1's in order

INSERT INTO Country SELECT N'TR', N'Türkiye', N'Ankara'

The __$update_mask becomes 0x07 where we have "111" in binary. The binary digit with least value is the first column in the table.

If an Update command is run and the Capital column value is updated then 2 new rows are created in the CDC table of the Country table.

UPDATE Country SET Capital = N'Tunus' WHERE Code = 'TU'

First row indicates the values prior the Update statement. This row has __$operation equal to 3 and __$update_mask value equal to 0x04 which is "100" in binary. You can see the updated column value from the table referencing the related column. The second row indicated the values after the Update statement. This second row has __$operation equal to 4 and again the same __$update_mask column value with the new value of the related columns.

You can also get the changes on a table by calling the cdc.fn_cdc_get_all_changes_capture_instance function. the capture_instance in the function name is the capture_instance column value which is declared or determined when the table is enabled for capturing data changes.

You can also find the capture_instance for a table that is tracked and logged for data changes in the cdc.change_tables table as the capture_instance column value.
You can execute the below sql statement to fetch the capture_instance value to use as a parameter to cdc.fn_cdc_get_all_changes_capture_instance function.

select capture_instance from cdc.change_tables



Sample Demonstration on Change Data Capture with DML queries

Assume that we have an empty dbo.Country table as shown in figure below

Change Data Capture sample

Assume that on the sample table which is initially empty and CDC feature is enabled, the following DML queries are executed in order.

insert into Country select 'TR', 'Turkey', 'Ankara'
update Country Set Name = N'Türkiye' where Code= 'TR'
delete from Country where code = 'TR'

If you want to see the effects of the above insert, update and delete queries on the capture instance of the Country table, run the below select query.

select * from cdc.dbo_Country_CT

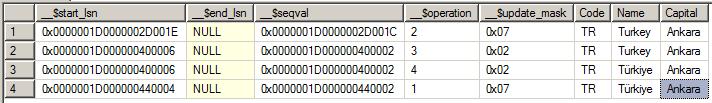

change-data-capture-records-logged-in-capture-instance-table


How to get a list of all the data changes for a SQL Server database table

So you can run the below SELECT query from the CDC table to get all changes.

select * from cdc.dbo_Country_CT

Or you can run the below SELECT query from the user function which returns rows only whose __$start_lsn value is between @from_lsn and @to_lsn

DECLARE @begin_time datetime
DECLARE @end_time datetime
DECLARE @from_lsn binary(10)
DECLARE @to_lsn binary(10);
SET @begin_time = GETDATE()-1;
SET @end_time = GETDATE();
SELECT @from_lsn = sys.fn_cdc_map_time_to_lsn('smallest greater than or equal', @begin_time);
SELECT @to_lsn = sys.fn_cdc_map_time_to_lsn('largest less than or equal', @end_time);
select * from cdc.fn_cdc_get_all_changes_dbo_Country(@from_lsn, @to_lsn, 'all');

LSN values __$start_lsn are Log Sequence Number associated with the commit transaction for the changes.

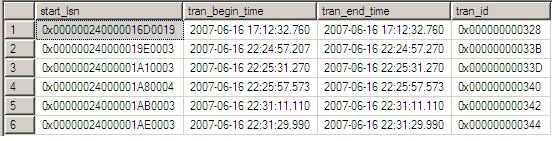

Log sequence numbers for a date-time value can be obtained from the cdc.lsn_time_mapping table

Change Data Capture

SQL syntax for sys.fn_cdc_map_time_to_lsn to get mapped lsn value for a datetime value is as follows:

sys.fn_cdc_map_time_to_lsn ( '<relational_operator>' , tracking_time )

Tracking time is in datetime and possible relational_operator values are;

  • largest less than
  • largest less than or equal
  • smallest greater than
  • smallest greater than or equal

To disable Change Data Capture feature on a database table, you can use the system procedure sys.sp_cdc_disable_table_change_data_capture. The syntax of the sys.sp_cdc_disable_table_change_data_capture procedure is as follows;

sys.sp_cdc_disable_table_change_data_capture [ @source_schema = ] 'source_schema' , [ @source_name = ] 'source_name' [, [ @capture_instance = ] 'capture_instance' | 'all' ]

.............
